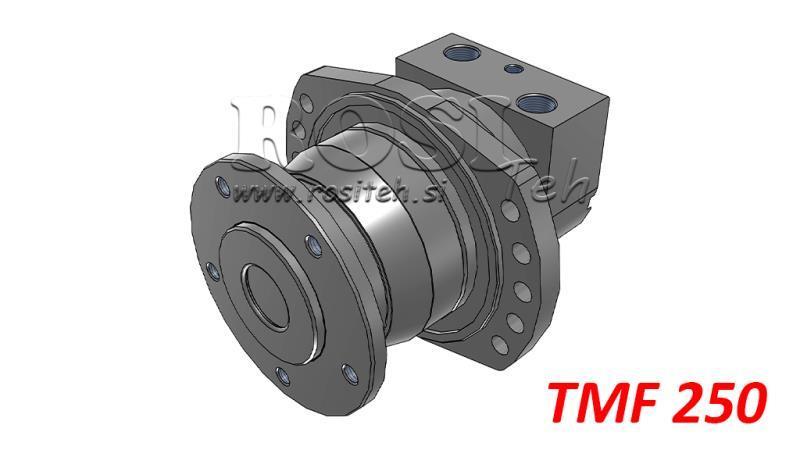

HYDRAULIC MOTOR TMF 250
Article code:
14225
OEM:
9990000167906
Tax rate
22 %
Price without VAT:
670,00 €
Price with VAT:
817,40 €
Ref:
1
|
Supplier: |
Turkey |
|
Return or exchange |
14 days |
|
Warranty: |
6 months |
|
Temperature range: |
from -40°C to 140 °C |
|
Oil flow: |
constant 125 L/min, max. 150 L/min |
|
Torque: |
constant 90 Nm, intermittent 128 Nm, max. 144 Nm |
|
cm/revolution: |
251,8 |
|
Revolution: |
constant 500 rpm, intermittent 600 rpm |
|
Weight: |
27,3 kg |
|
Pressure: |
constant 250 bar, intermittent 350 bar, max. 400 bar |
|
Power: |
constant 41 kW, max. 70 kW |
|
|
P |
T |
C |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
|
[mm] |
||||||||||
|
TMF 200 |
2x 3/4" |
1/4" |
5 x M 10 |
126 |
25 |
83 |
104 |
110,3 |
87 |
101,5 |
|
TMF 250 |
133 |
31,3 |
89,3 |
110,3 |
116,6 |
93,5 |
108 |
|||
