HYDRAULIC MOTOR MP 160
HYDRAULIC MOTOR MP 160
HYDRAULIC MOTOR MP 160
HYDRAULIC MOTOR MP 160
HYDRAULIC MOTOR MP 160
HYDRAULIC MOTOR MP 160

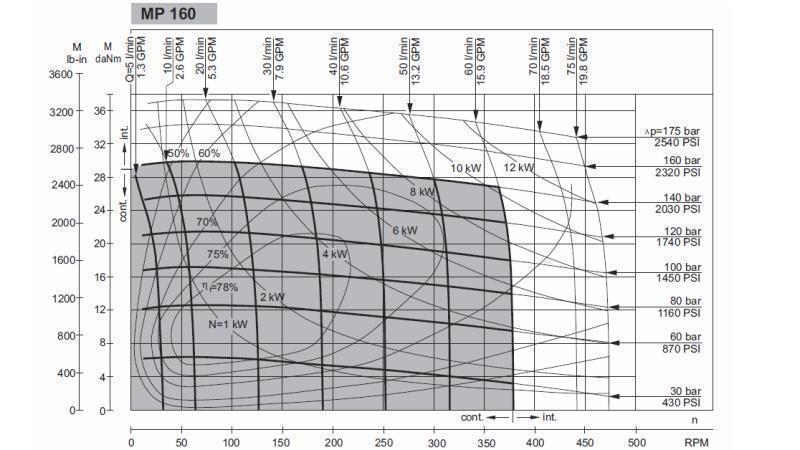

HYDRAULIC MOTOR MP 160 - FUNCTIONAL DIAGRAM
HYDRAULIC MOTOR MP 160
HYDRAULIC MOTOR MP 160
HYDRAULIC MOTOR MP 160
HYDRAULIC MOTOR MP 160
HYDRAULIC MOTOR MP 160
HYDRAULIC MOTOR MP 160
HYDRAULIC MOTOR MP 160 - FUNCTIONAL DIAGRAM

HYDRAULIC MOTOR MP 160

Article code:
10539
OEM:
9990000004621
Tax rate
22 %
Price without VAT:
143,44 €
Price with VAT:
175,00 €
Ref:
22
ADD TO CART



L [mm]

L1 [mm]

MP 40

136.5

7.4

MP 50

135.5

6.67

MP 80

139.5

10.67

MP 100

142

13.33

MP 125

145.5

16.67

MP 160

150

21.33

MP 200

155.5

26.67

MP 250

162

33.33

MP 315

171.5

42.67

MP 400

182

53.33



DIAGRAM 'MP 160'



Supplier:
Turkey
Oil flow:
constant 60 L/min, max. 75 L/min
Return or exchange:
14 days
torque:
constant 31.3 Nm, with interruptions 37.8 Nm, max. 43.8 Nm
cm/revolutions:
158.4
connection thread:
1/2"
Revolutions:
constant 378 rpm, with interruptions 472 rpm
Product weight:
6.4 kg
Warranty:
6 months
pressure:
constant 140 bar, with interruptions 175 bar, max. 225 bar
power:
constant 10.1 kW, max. 12.1 kW
